Listener

Even though problems could in principle be solved in-the-void, it is often necessary to track the execution of the solver, extracting and saving information during the run. To this extent, we introduce the last core component of JGEA: the Listener interface.

public interface Listener<E> {
  void listen(E e);
  default void done() {}
}

As briefly seen from the code of the IterativeSolver, a Listener has the duty to monitor, i.e., listen() to, the updates of the state during the execution of the solve() method.

We delegate the creation of Listeners to a ListenerFactory, which is used to build “augmented” listeners.

public interface ListenerFactory<E, K> {
  Listener<E> build(K k);
}

This derives from the need to monitor the execution, either parallel or sequential, of multiple instances of Solver solving multiple instances of Problem, being able to distinguish individual executions while saving or printing all information on the same target (e.g., the same CSV file for all the evolutionary runs). Moreover, a Listener might need additional information (an instance of K) to “augment” the results obtained by all invocations of the listen() method (e.g., the random seed of the specific run). To this extent, we invoke the build() method for each new execution with needed information K k passed as argument, to obtain a properly augmented Listener to be assigned to the run. We provide various realizations of the ListenerFactory interface, such as the TabularPrinter, used to pretty-print useful information on the standard output, or the CSVPrinter, employed to save data to a CSV file.

Concerning the information to be extracted from the state, one might be interested in the size of the population, the quality of the best individual, some function of the best individual, and so on. To allow the users to easily define the information they want to extract, and associate a name, and possibly a display format, to it, we introduce the NamedFunction interface. Typically, a List of NamedFunctions is passed to the constructor of a ListenerFactory, and each of them is invoked on a state within the listen() method to extract the needed information. These constructs make use of modern Java features inspired by functional programming, and favor the achievement of complex behavior, i.e., extracting non-trivial information from an execution, possibly making use of composite functions, in a concise and elegant manner.

A typical example of construction of a TabularPrinter is the following, which prints on the standard output the current iteration, the total number of births, the seconds elapsed since the start of the execution, the fitness of the best individual, and the distribution of fitness in the population (as a histogram), together with the name of the employed solver (to be passed within a Map data structure to the build() method), as displayed in figure 1.

ListenerFactory<POSetPopulationState<?, ?, ? extends Double>, Map<String, Object>> listenerFactory =
  new TabularPrinter<>(
    List.of(
      iterations(),
      births(),
      elapsedSeconds(),
      fitness().of(best()),
      hist(8).of(each(fitness())).of(all())
    ),
    List.of(attribute("solver"))
  );

Note that this listenerFactory will be able to listen to state updates for POSetPopulationStates constrained only to have at least a Double as fitness for the individuals. As a consequence, this listener might be used to monitor and track solver runs on different problems, provided they match the kind of state they work on.

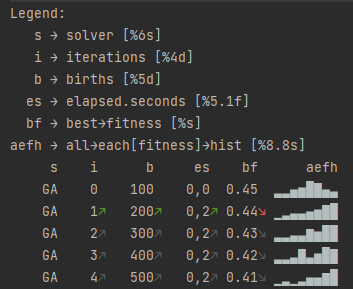

Figure 1: Sample output of a TabularPrinter. For sparing screen space, names of columns (each being a NamedFunction) are automatically abbreviated. Moreover, a graphical indication of the trend for each value is shown in the form of a colored arrow, when appropriate. Through composition of instances of NamedFunction, complex processing of monitored quantities can be performed, as the histogram of fitness values.
